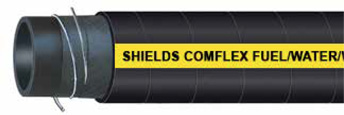

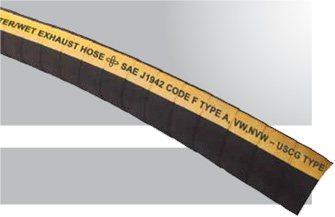

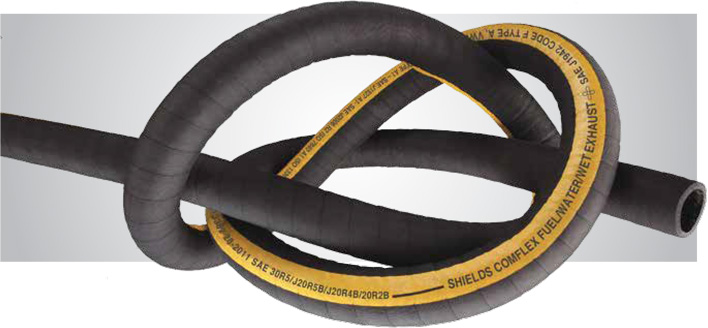

Shields Comflex is a versitle wire reinforced hose specially designed for inspected vessels. Comflex is rated for fuel, vital water and non-vital water systems on boats requiring SAE J1942 hoses. Applications include bilge, coolant, oil and fuel systems using gasoline, gasohol, diesel, bio-diesel, wet exhaust systems, non-potable water systems, engine intake, toilet and holding tank connections.
Tube: Black Nitrile
Reinforcement: 2 textile plies w/ dual wire helix
Cover: Black Chlorprene
Temp. Range: -20F to +212F
Specifcations – SAE J1942 Code F, VW, NVW; SAE J1527 A1; SAE J2006 R2; SAE 20R2 B; SAE J20R4 B; SAE 20R5 B, SAE 30R5,
ISO 7840 A1
Additional sizes available – 150’ minimum order
ORDER INFORMATION
| I.D. | mm | O.D | Ply | Wt “C” | Bend Radius | WP | 50′ Coil | 12 1/2′ (3.8m) Length | 10′ (3.1m) Length |
6 1/4′ (1.9m) Length |
|||||||||||
| 5/8” | 15.9 | 1″ | 2 | 33 | 1.5 | 75 | 16-321-0580 | 16-321-0584 | 16-321-0583 | 16-321-0581 | |||||||||||
| 3/4″ | 19.1 | 1.19″ | 2 | 39 | 1.5 | 75 | 16-321-0340 | 16-321-0344 | 16-321-0343 | 16-321-0341 | |||||||||||
| 1″ | 25.4 | 1.41″ | 2 | 53 | 2 | 75 | 16-321-1000 | 16-321-1004 | 16-321-1003 | 16-321-1001 | |||||||||||
| 1 1/8″ | 28.6 | 1.56″ | 2 | 62 | 3 | 75 | 16-321-1180 | 16-321-1184 | 16-321-1183 | 16-321-1181 | |||||||||||
| 1 1/4″ | 31.8 | 1.66″ | 2 | 64 | 3 | 75 | 16-321-1140 | 16-321-1144 | 16-321-1143 | 16-321-1141 | |||||||||||
| 1 1/2″ | 38.1 | 1.91″ | 2 | 78 | 3 | 50 | 16-321-1120 | 16-321-1124 | 16-321-1123 | 16-321-1121 | |||||||||||
| 2″ | 50.8 | 2.48″ | 2 | 118 | 5 | 50 | 16-321-2000 | 16-321-2004 | 16-321-2003 | 16-321-2001 |
