SeaStar Jackplates

The latest in SeaStar Jackplate Revolution. Delivering advanced engineering through customer input.

FEATURES

  • Xtreme Jackplate line with 400HP rating in all setbacks
  • Easy wrench access to engine bolts from the side
  • Easier access to transom mounting bolts
  • Thicker anodizing with anode attachment points
  • Improved smoother bushing design
  • Shallow water anchor mountable on all setbacks
  • Easier SmartStick installation for ProTap upgrades
  • Lower weight

The SeaStar Standard Jackplate is one of the sleekest and most durable engine Jackplates available. This essential performance accessory allows for higher speed, gains in fuel economy and the ability to run in shallow water. The SeaStar Jackplate features sleek, bold styling that is redefining the look for Jackplates.

Available in 4 , 6, 8, 10 and 12 inch setbacks, it also has a new, high speed, hydraulic actuator that lifts engines 5.8″ in 8.5 seconds. The SeaStar Standard Jackplate is rated for 300 horsepower engines tilt when used with SeaStar steering cylinders.

FEATURES

  • Our Standard Jackplate is easily capable of handling up to 300 horsepower engines
  • Rapid hydraulic response in 8.5 seconds
  • Complete regid engine support at full thrust
  • Easily moves engine up or down at full thrust
  • Smooth operation with composite bushings
  • Easy wrench access to engine bolts from the side
  • Compatible with Power Pole®
    and Talon®

SEASTAR MANUAL JACKPLATES

SeaStar-Jackplates-manual

The The JP1000 Series Jackplate comes in 4”, 6”, 8”, and 10” setbacks to help you find the best match for your boat and optimize performance. 3” of available lift.

FEATURES

  • Interlocking slide guides offer enhanced strength while providing smooth, 3” of bind-free travel.
  • The lead screw assembly sets the plate height and the Side Locks are used to hold the position.
  • The stainless steel lead screw is resistant to corrosion and pre-greased for smooth operation.
  • Maximum supported engine weight of 585 lbs is capable of handling the most demanding outboard engines including the latest generation of 4-strokes.

SEASTAR MANUAL JACKPLATES

JACKPLATE ACCESSORIES
SeaStar-Jackplates-pro-trimOptional accessories are available for our SeaStar Jackplates including switches, gauges, adapter plates and Pro-Trim trim controls. Pro-Trim  trim control the way it’s meant to be… at your fingertips. With Pro-Trim from SeaStar Solutions, you can keep both hands on the wheel and concentrate on your driving. Its clean, modern design looks at home in any cockpit and there are no cords to tangle around the steering wheel, a big plus for boats with hydraulic steering!
Single Function – PT1000-1P
Pro-Trim Dual Function – PT2000-1P

SeaStar-Jackplates-smartstick
SMARTSTICK AND GAUGE KIT
A high-visibility position scale provides the driver with an at-a-glance visual position indicator. For real-time information at the helm, SeaStar Solutions offers a SmartStick position sensor and gauge option. The SmartStick sensor is a non-contact linear position sensor, so there are no moving parts to wear out. All the electronics are integrated into the sensor body, making it fully waterproof. – DK4220

SEASTAR JACKPLATE HORSEPOWER APPLICATION GUIDE

PART No. 75HP 115HP 150HP 200HP 250HP 300HP 350HP 400HP
JP5040R
JP5060R
JP5080R
JP5100R
JP5120R
JP5040X
JP5060X
JP5080X
JP5100X
JP5120X

ORDER INFORMATION

RATED FOR 400 HP

RATED FOR 300 HP

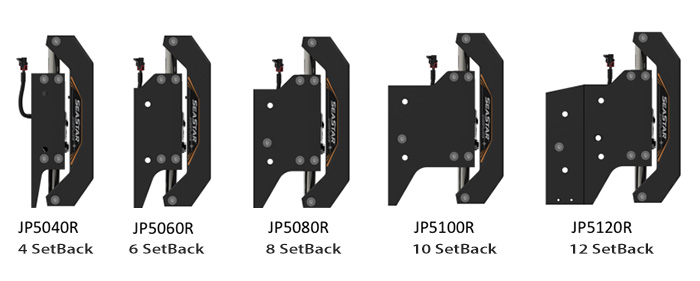

Hydraulic Jackplate  4″ Setback Standard JP5040R*
Hydraulic Jackplate  6″ Setback Standard JP5060R
Hydraulic Jackplate  8″ Setback Standard JP5080R
Hydraulic Jackplate  10″ Setback Standard JP5100R
Hydraulic Jackplate  12″ Setback Standard JP5120R
RATED FOR 400 HP

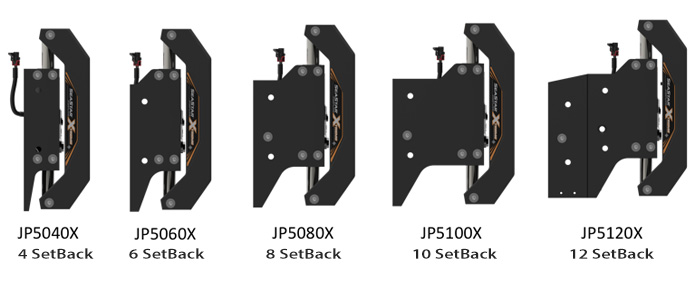

Hydraulic Jackplate  4″ Setback Xtreme JP5040X*
Hydraulic Jackplate  6″ Setback Xtreme JP5060X
Hydraulic Jackplate  8″ Setback Xtreme JP5080X
Hydraulic Jackplate  10″ Setback Xtreme JP5100X
Hydraulic Jackplate  12″ Setback Xtreme JP5120X
MANUAL JACKPLATES
4” Setback JP1040SS
6” Setback JP1060SS
8” Setback JP1080SS
10” Setback JP1100SS
ACCESSORIES
Hole Shot Plate 6” HSP5060
Hole Shot Plate 8” HSP5080
Hole Shot Plate 10” HSP5100
Hole Shot Plate 12” HSP5120
Bolt Kit, ½-20 UNC 2.5” L, 4 pack DK6125
Bolt Kit, ½-20 UNC 3.5” L, 4 pack DK6135
Bolt Kit, ½-20 UNC 4.5” L, 4 pack DK6145
Bolt Kit, ½-20 UNC 6.5” L, 4 pack DK6165
Basic Rocker Switch DK4020**
ProTrim Switch Single Function PT1000-1P
ProTrim Switch Dual Function PT2000-1P
SmartStick and Gauge Kit DK4220
Gauge and Harness Kit DK4320
Accessory Adapter DK4600
Jackplate Replacement Relay DK3010
Jackplate Wire Harness DK4420
Actuator Kit, 3/8″ Mount Bolt, 5/16“ Socket DK4710***
Actuator Kit, 7/16″ Mount Bolt, 3/8″ Socket DK4720****
SeaStar Stabilizer Clips, (pack of 2) HYCL-001
Transom Plate, Small, 2″ x 15″ 18-79987
Transom Plate, Large, 4″ x 17″ 18-79988

NOTES:
*        Accessory adapter DK4600  required for installation of Power Pole® or Talon® on JP5040R and JP5040X.
**      Included with Jackplate harness.
***    Used on Jackplates with serial numbers D4000-00001 to D4000-001843
****  Used on Jackplates with serial numbers above D4000-001843 and any Jackplate serial numbers starting with JPXXXX
